Corrosion Assessment in Rebars of RC Structures Using PZT patches
Objective:
This simulation experiment is based on experimental data measured during actual accelerated corrosion tests carried out on reinforced concrete (RC) structures (bare rebar).
Apparatus Used:
1. An empty tank
2. Brine solution
3. Copper rod as cathode
4. Bare rebar as anode
5. PZT patch
6. Power supply
7. Bare rebar holder
8. Copper rod holder
Bare rebar holder

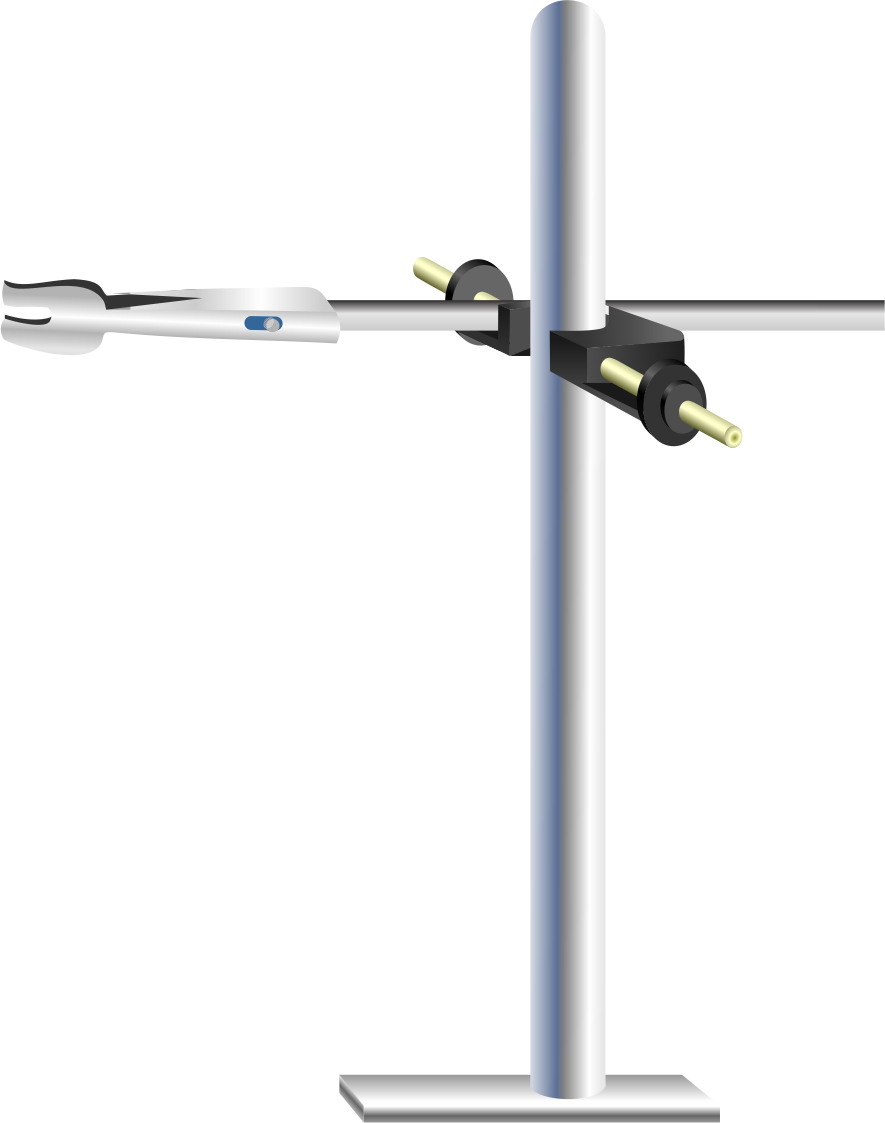

Copper rod holder

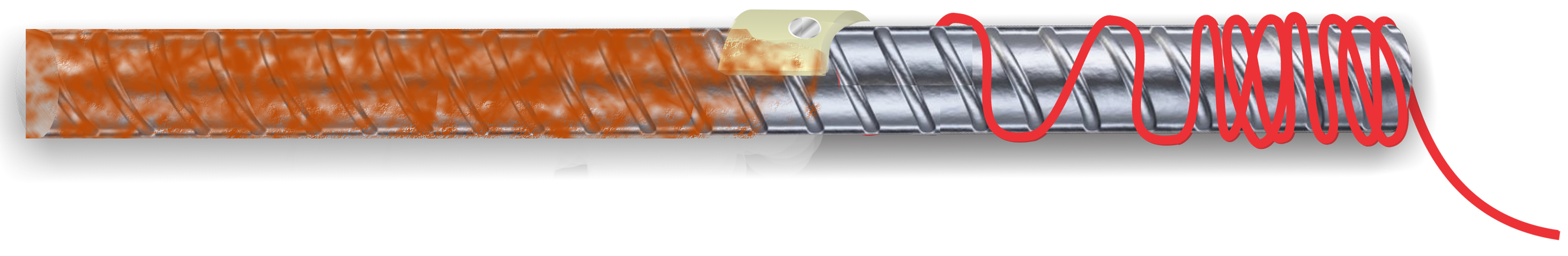

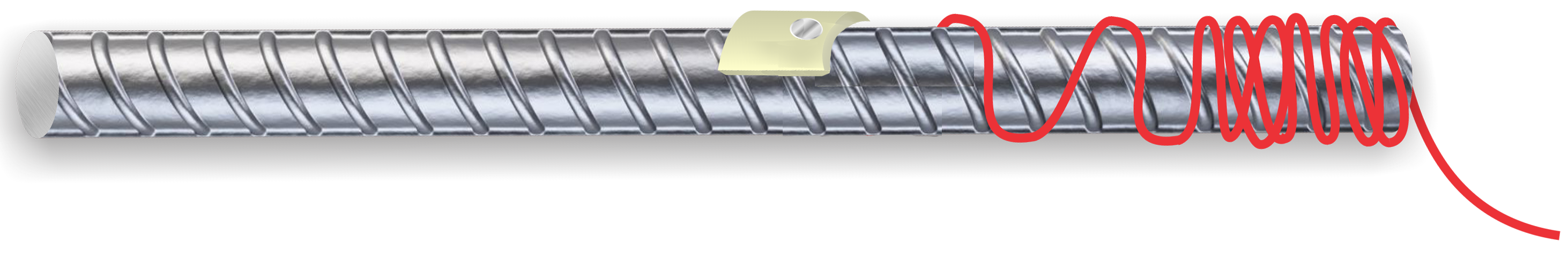

Bare rebar

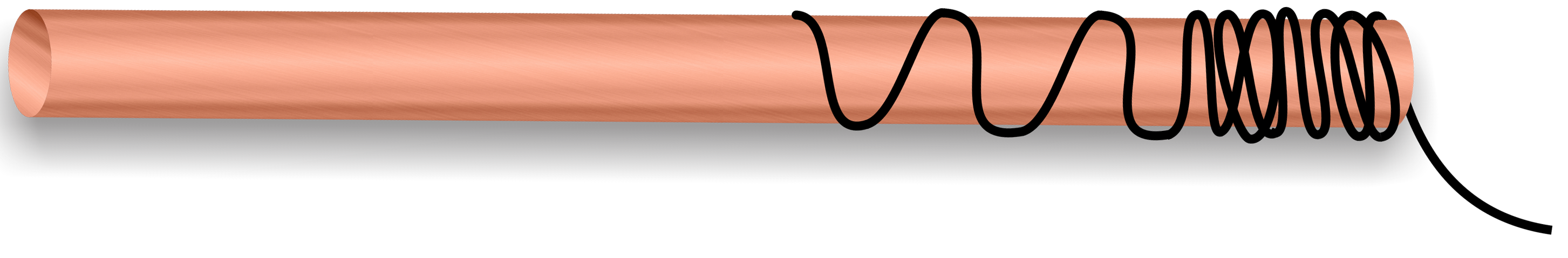

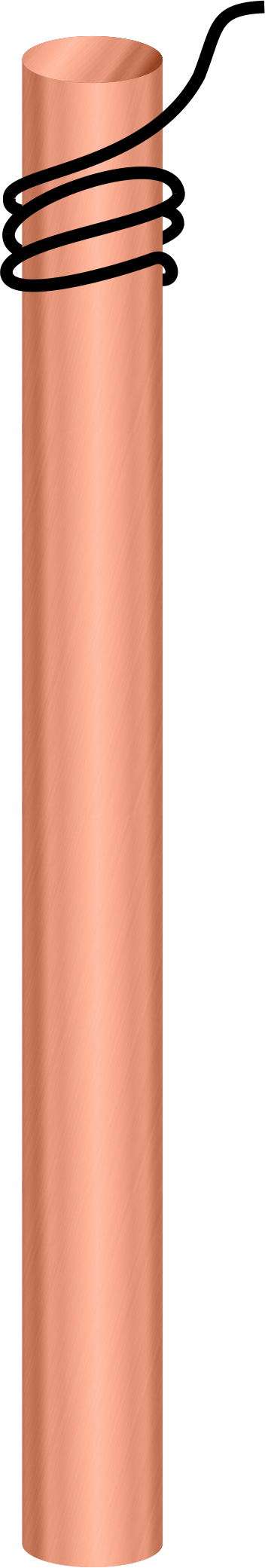

Copper rod

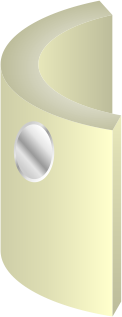

PZT patch
Empty tank
Brine solution
Power supply
Step-1: (a) Click on add button to bring empty tank.
Step-1: (b) Click on tank to place it on the position.
Step-1: (c) Click on add button to bring brine solution.
Step-1: (d) Click on brine solution to pour it into the tank.
Step-1: (e) Click on add button to bring bare rebar holder.
Step-1: (f) Click on add button to bring bare rebar.
Step-1: (g) Click on bare rebar to fix it on the bare rebar holder.
Step-1: (h) Click on add button to bring copper rod holder.
Step-1: (i) Click on add button to bring copper rod.
Step-1: (j) Click on copper rod to fix it on the copper rod holder.
Step-1: (k) Now click on next button.
Step-2: (a) Click on black clip to attach wire with copper rod.
Step-2: (b) Click on red clip to attach wire with bare rebar.
Step-2: (c) Now click on next button.
